Version: 10.

Template Variables

Template variables are used to define the Form Template settings and configurations. They are declared inside the <Form>-tag of the Form Template file. Some of the variables are obligatory, others are optional.

Required variables
<!-- landscape title -->
<var data-hf-name="Title">Demo Form</var>

<!-- Provide info on the Form Template version -->
<var data-hf-name="info" ...></var>

Optional variables
<var data-hf-name="DataSource" ...></var>

<var data-hf-name="FormDevCatalogIncludes" ...></var>

<var data-hf-name="AppKioskMode" ...></var>

<var data-hf-name="SketchTemplates" ...></var>

<var data-hf-name="ListPageFavorites" ...></var>

<var data-hf-name="ApproveButton" ...></var>

<var data-hf-name="DrawingColorPalette" ...></var>

<var data-hf-name="IconPicker" ...></var>

<var data-hf-name="PdfSettings" ...></var>

<var data-hf-name="TabMenuSettings" ...></var>

<var data-hf-name="FormSettings" ...></var>

<var data-hf-name="MediaSettings" ...></var>

<var data-hf-name="Initializer" ...></var>

<var data-hf-name="Reachout" ...></var>

Title(s)*

The Form Template title is displayed in the page header (on the list and Form page) or other parts of your Form.

<!--  title -->
<var data-hf-name="Title">FORM REPAIR</var>

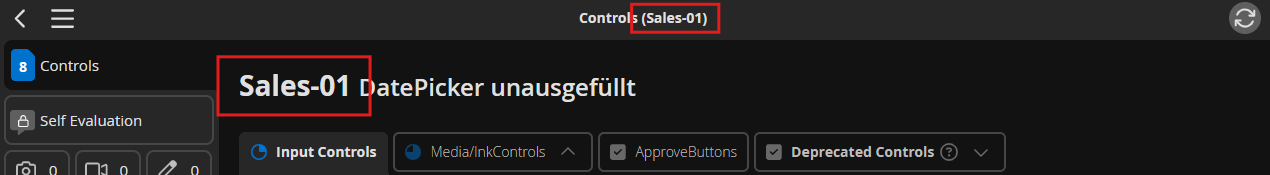

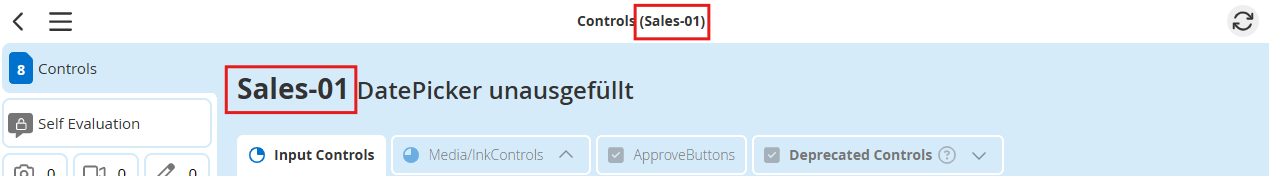

Light Form Title Dark Form Title

Note

Per default the title is displayed in the page header of the list and Form page. But you can use the title variable in other parts of your Form as well (eg. in the title template as shown in the example above). You can place the title variable in any part of your Form Template with the data-hf-bind: data.FormTitle attribute.

<span data-hf-bind="innerHTML: data.FormTitle"></span>

Version Info*

The version info variable provides form version information and can define min App and min server version. The <var> tag with the name info is required in the Form Template file, any template upload without version info will fail.

<form>
    ...
    <var
        data-hf-name="info"
        data-hf-version="2.1.0"
        data-hf-date="2019-10-29T11:40:02"
        data-hf-min-app-version="6.7.0"
        data-hf-min-server-version="6.6.4"
        data-hf-conditions-on-render="true"
    >
    </var>
    ...
</form>

The attributes data-hf-version and the data-hf-date are required, others are optional.

If a minimum App version (data-hf-min-app-version) or a minimum server version (data-hf-min-server-version) is defined, this condition gets checked client-side. If the minimum version condition is not met, an error message is shown to the user.

The attribute data-hf-conditions-on-render is optional and can be set to true or false. If set to true form conditions are processed on form render, if set to false form conditions processed on first page visit.

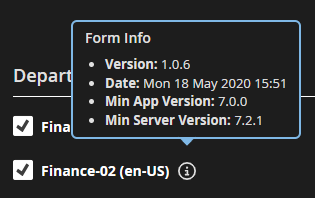

The version information will be displayed at the settings page:

Light Version information Dark Version information
Version information

DataSource

If data sources are not directly referenced within our controls (eg. a ComboBox through the url option) but used in Custom Code, they must be defined in a DataSource form variable.

<var data-hf-name="DataSource" data-hf-data-source-id="Staat"
    >/api/catalogs/Staat?$select=Title,KatalogText&amp;$orderby=KatalogText&amp;$top=5000</var
>

On Form Template subscription the catalog within the <var> tag gets attached to the form.

It can be accessed through Form-API method HybridForms.API.FormStorage.getDataSource by the name set at data-hf-data-source-id attribute.

FormDev DataSources

In the formDev environment any catalog inside your HTML-file referenced by URL has to be replaced by a JSON-file. For example the previously declared DataSource "Staat" has to be present as "catalog.Staat.json" inside your folder to get the catalog in the formDev environment.

For FormControls with data sources (ComboBoxes, DropDownLists) the JSON-files could be referenced in two ways:

by the catalog name, eg: catalag.<CatalogName>.json. The CatalogNameis the name that you reference in the url property of the control
by the id of the form control (deprecated), eg: catalag.<FormControlID>.json

In case of multiple form templates using one .templ-file it is necessary to provide these JSON-files in each definition folder.

By declaring the variable FormDevCatalogIncludes it is possible to reduce the number of files by storing the JSON-files in the template folder only.

<var
    data-hf-name="FormDevCatalogIncludes"
    data-hf-catalogs='[
        { "catalog": "../FormTempl.templ/catalog.CatalogName01.json" },
        { "catalog": "../FormTempl.templ/catalog.CatalogName02.json" }
    ]'
>
</var>

In this example all Form Controls including the catalog urls /api/catalogs/CatalogName01/?$select=... and /api/catalogs/CatalogName02/?$select=... load the substitutional data source from the template folder.

App Kiosk Mode

The App Kiosk Mode is designed for providing the possibility to let unauthorized persons fill out forms in a secure way.

To enable the App Kiosk Mode the <var> tag has to be set:

<var data-hf-name="AppKioskMode" ... ><var>

For more information on the App Kiosk Mode please refer to page "App Kiosk Mode".

Sketch Templates

Define background images for sketches inside your Form Template.

Additional to the standard backgrounds of the HybridForms App (i.e. "blank" and "grid"), you can add predefined backgrounds by declaring background images inside your Form Template.

<!--  background images for sketches -->
<var
    data-hf-name="SketchTemplates"
    data-hf-templates='[
        {"image": "sketchBackground01.jpg", "label": "Testtemplate"},
        {"image": "schaltplan.png", "label": "Schaltplan", "thumbnailImage": "schaltplan_tn.png"},
        {"image": "sketchBackground02.jpg", "label": "Platine"},
        {"image": "sketchBackground03.jpg", "label": "Nebula"}
    ]'
    data-hf-show-default-templates="true"
>
</var>

Light Sketch templates Dark Sketch templates
Sketch templates

The specific backgrounds are defined by listing the image name and the display label inside a JSON array.

Note

Provide the images the same way as other images referenced inside your Form Template.

The JSON array consists of the key/value pairs "image", "label", "thumbnailImage", where image and label are required data and the thumbnailImage is optional. If no "thumbnailImage" property is provided, the original image is presented on the sketch gallery. If you provide high resolution sketch templates always provide a thumbnail image, because the size of the image and the number of sketch templates could lead to performance issues.

The variable option data-hf-show-default-templates can be configured as true, thereby enabling the default sketch backgrounds within the HybridForms App, or it can be set as false to disable them.

ListPage Favorites

By employing this variable, you can predefine how listings of forms are sorted, grouped and filtered. A user can define and save favorits of form listings in the App. With this variable predefined "form favorites" can be set that are then available for every user for this Form Template.

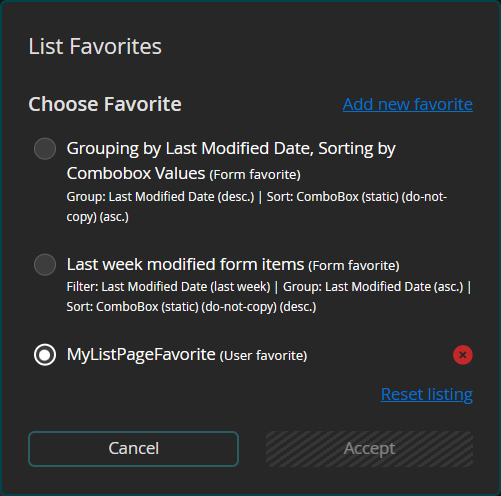

Light ListPage Favorites Dark ListPage Favorites
ListPage Favorites

Note

Each user has the possibility to define and save personal "user favorites" based on his own assembly of sort, filter and group criterias.

The JSON array entries can contain the key/value pairs "label", "sorting", "grouping", "filter" and "default" where only the key/value pair "label" is required.

Note

Defining a list page favorite with only a label will set the layout of the list page to the HybridForms App default settings. These are "grouping" none, "sorting" - ascending by date "last modified" and "filter" none.

The values of "sorting", "grouping", "filter" are nested JSON objects and have to contain the key/value pairs "id" and "type", the setting "filter" additional the key/value pair "filterValue". The key/value pair "direction" is optional.

<var
    data-hf-name="ListPageFavorites"
    data-hf-favorites='[
        {
            "label": "Group by Date, Sort by Combobox",
            "sorting": {"id":"tab1_combobox_statisch", "direction": "ascending", "type": "text"},
            "grouping":{"id":"lastModified", "direction": "ascending", "type":"date"},
            "default": false
        },
        {
            "label": "Forms edited last week",
            "grouping":{"id":"lastModified", "direction": "ascending", "type":"date"},
            "sorting": {"id":"tab1_combobox_statisch", "direction": "descending", "type": "text"},
            "filter": {"id": "lastModified", "label":"Last Modified", "type": "date", "filterValue":"lastWeek"},
            "default": false
        } ,
        {
            "label": "Forms in Stage 1",
            "filter": {"id": "stage", "label":"Stage 1", "type": "stage", "filterValue":[{"value": "ST1", "text": "Stage ST1"}]},
            "default": false
        } ,
        {
            "label": "Checkbox activated",
            "filter": {"id": "checkboxh1", "label":"Checked", "type": "checkbox", "filterValue": true},
            "default": false
        }
    ]'
>
</var>

key	value	How to use	Description
label*	String		Provide a name for your predefined listing.
grouping	Object	`grouping: { ... }`	Define the desired grouping options.
sorting	Object	`sorting: { ... }`	Define the desired sorting options.
filter	Object	`filter: { ... }`;	Define the desired filter options.
default	Boolean	`"default": false`	Specify the default behavior of the favorite setting - active on load of the list page (`true`) or not (`false`)

* These options are required.

Note

The three possibilities to structure the list are influencing each other: Filtering the list will restrict the display to the form items matching the predefined filter criteria. This reduced list is grouped according to the grouping criteria and the groups are sorted according to any defined sort criteria.

Nested JSON Object 'grouping'

key	value	How to use	Description
id*	String	`"id":"tab1_combobox_statisch"`	The ID of the form control used for grouping/sorting/filtering.
direction	String	`"direction":"ascending" "direction":"descending"`	Define the sorting criteria of the groups, i.e. ascending or descending.
type*	String	`"type":"date"`	Define the data type of the form control. Possible values are: `boolean,text, number, date, time , select, radio`

* These options are required.

Nested JSON Object 'sorting'

key	value	How to use	Description
id*	String	`"id":"tab1_combobox_statisch"`	The ID of the form control used for sorting.
direction	String	`"direction":"ascending" "direction":"descending"`	Define the sorting criteria i.e. ascending or descending.
type*	String	`"type":"date"`	Define the data type of the form control. Possible values are: `boolean, text, number, date, time , select, radio`

* These options are required.

Nested JSON Object 'filter'

key	value	How to use	Description
id*	String	`"id": "lastModified"` `"id": "formDate"`	Besides the IDs of Form Controls of your template there are two default values possible: `lastModified` represents the date of the latest saved change and `formDate` the date of the Form Item creation.
direction	String	`"direction":"ascending" "direction":"descending"`	Define the sorting criteria i.e. ascending or descending.
type*	String	`"type":"date"`	Define the data type of the form control. Possible values are: `boolean, text, number, date, time, select, radio`
filterValue*	String	`"filterValue":"lastWeek"`	Define the value of the filter, i.e. the search criteria the form control's value has to match to.
	JSON Object	`"filterValue":[{"value": "ST1", "text": "Stage ST1"}]`	Define the value of the filter, i.e. the search criteria the form control's value has to match to.
	Boolean	`"filterValue": true`	Define the value of the filter, i.e. the search criteria the form control's value has to match to.

* These options are required.

filterValue ('JSON Object')

This filterValue type is applicable for the type "stage". The JSON object consists of the key-value pair declared inside your stages.json: The key represents the custom name of your stages object ("value": "ST1") and the value is the label defined in the object ("text": "Stage ST1").

"ST1": {
    "first": true,
    "label": "Stage ST1",
}

filterValue ('String')

This filterValue is applicable to all text-based values of the controls "ComboBox", "Datepicker", "NumericField", "SelectBox", "TextField" and "TimePicker".

Note: The filterValue for the "type":"date" must be one of these predefined values ('today', 'last3days', 'currentWeek', 'currentMonth', 'lastMonth','currentYear' and 'lastYear') of time periods.

filterValue ('Boolean')

This filterValue is applicable to the controls "CheckBox" and "RadioBox" and must not be quoted.

Customized Approve Button

Customize the label, tooltip and pop-up dialog of the Approve button to your requirements.

<var
    data-hf-name="ApproveButton"
    data-hf-label="Custom Approve Button: {{field_id}}"
    data-hf-dialog-message="The custom text of the dialog containing value: {{field_id}}"
    data-hf-dialog-title="The custom title of the dialog"
>
</var>

The placeholder {{field_id}} can be used to display list data values.

Note

The attribute data-hf-label is required and is used as button label and tooltip text. The attributes data-hf-dialog-message and data-hf-dialog-title are optional and set the Approve dialog title and information text.

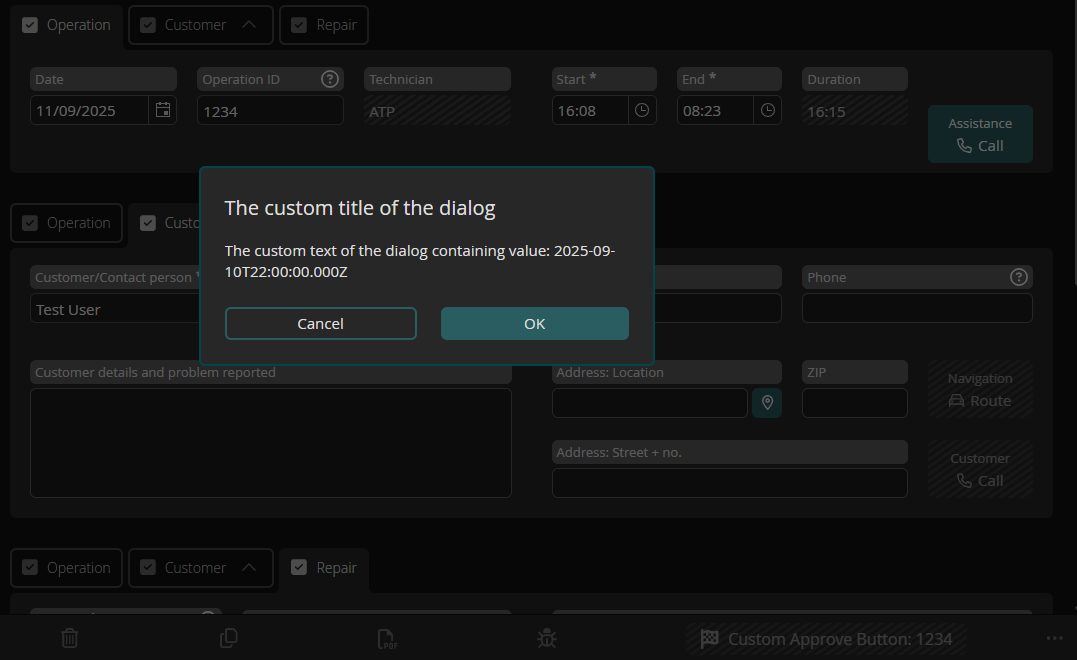

Light Customized Approve Button Dark Customized Approve Button
Customized Approve Button

Customized Color Palette

Use this variable to predefine the color palette for the drawing feature.

Info

The definition affects all drawing possibilities (inside the features and Form Controls).

Light Custom Color Palette Dark Customized Color Palette
Custom Color Palette

Info

The JSON array entries contain the key/value pairs "color", "text" and "default" where key/value pair "color" and "text" are required.

The variables option data-hf-extend-default-colors has to be a boolean value:

true extends the HybridForms App default color palette. If new default color is set in FormDefintion the HybridForms App default color will be overwritten.
false overwrites the HybridForms App default color palette.
If not set the HybridForms App default color palette will be overwritten.

<var
    data-hf-name="DrawingColorPalette"
    data-hf-colors='[
        { "color": "#000000", "text": "black" },
        { "color": "#0000ff", "text": "blue" },
        { "color": "#ff0000", "text": "red", "default": true },
        { "color": "#00b900", "text": "green" },
        { "color": "#ffa500", "text": "orange" }
    ]'
    data-hf-extend-default-colors="false"
>
</var>

key	value	How to use	Description
color*	String	`"color": "#32a952"`	Provide a value for your color palette listing. The value has to be a legal Hexadecimal CSS color value.
text*	String	`"text": "green"`	Provide a name for your color palette listing.
default	Boolean	`"default": true`	Specify the default color of the palette. If no default value is specified, the first value of the list will be set as default.

* These options are required.

Icon Picker

The IconPicker variable is a component designed for the drawing board that allows users to select icons or symbols to be used in their drawings. It provides a user-friendly interface for browsing and selecting icons from a predefined set of options.

The definition affects all drawing possibilities (inside the features and Form Controls).

<var
    data-hf-name="IconPicker"
    data-hf-icons='[{
        "title": "Rohrleitungen",
        "icons": [{
            "label": "Leitung frei verlegt",
            "name": "leitung-frei-verlegt.png"
        }, {
            "label": "Batterie voll",
            "name": "battery-full-solid.svg"
        }]
    }, {
        "title": "Rohrleitungen 2",
        "icons": [{
            "label": "Leitung frei verlegt",
            "name": "leitung-frei-verlegt.png"
        }, {
            "label": "Batterie voll",
            "name": "battery-full-solid.svg"
        }, {
            "label": "Leitung frei verlegt",
            "name": "leitung-frei-verlegt.png"
        }, {
            "label": "Batterie voll",
            "name": "battery-full-solid.svg"
        }, {
            "label": "Leitung frei verlegt",
            "name": "leitung-frei-verlegt.png"
        }]
    }, {
        "title": "Rohrleitungen 3",
        "icons": [{
            "label": "Leitung frei verlegt",
            "name": "leitung-frei-verlegt.png"
        }, {
            "label": "Batterie voll",
            "name": "battery-full-solid.svg"
        }, {
            "label": "Leitung frei verlegt",
            "name": "leitung-frei-verlegt.png"
        }, {
            "label": "Batterie voll",
            "name": "battery-full-solid.svg"
        }]
    }]'
>
</var>

Structure

data-hf-icons is used to define all available sets of icons. It is implemented as an array of objects with the following properties:

title (string): The title of the icon picker variable. It provides a brief description or label for the set of icons it represents.
icons (array): An array of objects representing the individual icons within the set. Each icon object contains two properties: label and name.
- label (string): A short description or label for the icon. It helps users understand the purpose or meaning of the icon.
- name (string): The name or identifier of the icon. It should be unique within the set of icons and can be used to reference the selected icon.

PDF Settings

Use this variable to control the PDF output.

For more information on the possibilities please refer to page "Create PDF"

TabMenu Settings

Use this variable to control the tab menu.

Property	Options/Type	Description
data-hf-disable-fixed-menu	boolean, Array	Dis/Enable fixed tab menu. It can have an array of tab ids to only hide specific tab titles.
data-hf-scrollable-menu	boolean, Array	Dis/Enable a scrollable tab menu, which overflows the viewport var(--ifm-alert-border-width). It can have an array of page ids to remove only the page breaks after specific pages.

<var
    data-hf-name="TabMenuSettings"
    data-hf-disable-fixed-menu='["controls-page", "repeatingunits"]'
    data-hf-scrollable-menu='["controls-page", "repeatingunits"]'
>
</var>

Form Settings

Use this variable to control form settings for HybridForms.

<var
    data-hf-name="FormSettings"
    data-hf-formLogo="logo.png"
    data-hf-formLogoDark="logo-dark.png"
    data-hf-formLogoWidth="80"
    data-hf-characterWhiteListRegExp="[a-zA-Z0-9äöüßÄÖÜ\-.,;:_!@#%&()?'`+=]"
    data-hf-characterWhiteList="abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789äöüßÄÖÜ\-.,;:_!@#%&()?'`+="
    data-hf-invalidCharacterErrorText='The following characters are not allowed in filenames: "{0}". The file could not be uploaded.'
>
</var>

Form Logo

To customize the form's appearance, you can set a logo that will be displayed in the Navbar. Use the data-hf-formLogo attribute to specify the filename of the logo image, which must be located in the Template folder. data-hf-formLogoDark can be used to specify a dark version of the logo for a dark theme. Additionally, the size of the logo can be adjusted with the data-hf-formLogoWidth attribute, where the value represents the width of the logo as a percentage of the Navbar's width. For example, setting data-hf-formLogo="logo.png" will use "logo.png" as the logo, and data-hf-formLogoWidth="50" will set the logo's width to 50% of the Navbar's width.

Character Whitelist

Use this option to set a whitelist of allowed characters for all Form Controls. You can use the regular expression or the string version of the whitelist. If both are provided the regular expression is used. Optionally you can provide your own error text for the invalid character error message. If you want to give the user a hint what characters are not accepted in the current input you can use the placeholder {0} in your error text (E.g: "The following characters are invalid: 0"). You can also provide translation keys. If no error text is provided a default error message is used.

Note

The character whitelist is also applied to file names of uploaded media files. If you want to allow special characters in the file name you have to provide them in the character whitelist media settings variable.

Media Settings

Use this variable to control media settings for HybridForms.

<var
    data-hf-name="MediaSettings"
    data-hf-compression='{
        "type": "compress",
        "options": {
            "format": "jpg",
            "jpgQuality": 0.1,
            "maxDimension": 1400
        }
    }'
    data-hf-condition='{
        "cond": [{
            "type": "stage",
            "id": "S1",
            "val": true
        }],
        "else": "invisible"
    }'
    data-hf-condition-picture='{
        "cond": [{
            "type": "stage",
            "id": "S1",
            "val": true
        }],
        "else": "readonly",
        "addNewMedia": true
    }'
    data-hf-characterWhiteListRegExp="[a-zA-Z0-9äöüßÄÖÜ\-.,;:_!@#%&()?'`+=]"
    data-hf-characterWhiteList="abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789äöüßÄÖÜ\-.,;:_!@#%&()?'`+="
    data-hf-invalidCharacterErrorText="{{@InvalidCharsErrorText}}"
    data-hf-saveImageToPhotoAlbum="true"
    data-hf-maxFilenameLength="10"
    data-hf-registerMaps="googleMapsApiKey,hfMap-MapLibreBaseMap,Basemap-OpenLayers"
>
</var>

Picture Compression

Use this option to set picture compression for all uploaded images inside this form.

Info

The definition affects all image uploads (inside features and Form Controls).

<var
    data-hf-name="MediaSettings"
    data-hf-compression='{
        "type": "compress",
        "options": {
            "format": "jpg",
            "jpgQuality": 0.1,
            "maxDimension": 1400
        }
    }'
>
</var>

The value of the data-hf-compression must be a JSON string.
The typescript representation of the condition object is defined below:

interface IPictureCompression {
    type: 'original' | 'compress';
    options: IPictureCompressionOptions;
}

interface IPictureCompressionOptions {
    format: 'jpg' | 'png' | 'original';
    jpgQuality: number;
    maxDimension: number;
}

key	value	How to use	Description
type*	String	`"type": "compress"`	Enable or disable picture compression by setting type to `compress` or `original`.
options	Object	`"options": { ... }`	Define the compression depth.

* These options are required.

Compression options

key	value	How to use	Description
format	String	`"format": "jpg"`	Set the image format of the output file. Conversions to `png` or `jpg` format are supported, default is `original` (the original image format remains the same).
jpgQuality	Number	`"jpgQuality": 0.1`	Set the jpg image quality to compress the output file. Values between `0.1` and `1` are supported. Default value is `0.9`. Note: All uploaded jpgs get compressed. If the format option is set to `jpg`, all pictures get compressed with the given value.
maxDimension	Number	`"maxDimension": 1400`	Set the maximum dimension of the output file. If this property is not provided, the dimensions of the image are not altered.
maxSizeMB	Number	`"maxSizeMB": 3`	Set the maximum file size of the output file. Default is the maximum size of the upload limit of your server. Note: It is recommended to use the `maxDimension` option to reduce file size instead of this property.

If no options are provided and the type is set to "compress", the image file gets compressed with the default values.

Warning

On iOS devices, images are always compressed to a maximum of 8192 pixels on the longest side because of memory limitations.

Feature Conditions

This setting controls the visibility and validation of our media libraries by adding conditions. The same rules apply as for form control conditions. Only the property addNewMedia is specific to the media library conditions. If the property addNewMedia is set to true the user can add new media files to the library even if the condition is not met.

If only the data-property data-hf-condition is provided, the condition is applied to all different types of media libraries.

If the data-property data-hf-condition-audio is provided, the condition is applied to the audio library only.

If the data-property data-hf-condition-document is provided, the condition is applied to the document library only.

If the data-property data-hf-condition-map is provided, the condition is applied to the map library only.

If the data-property data-hf-condition-model is provided, the condition is applied to the model library only.

If the data-property data-hf-condition-picture is provided, the condition is applied to the picture library only.

If the data-property data-hf-condition-sketch is provided, the condition is applied to the sketch library only.

If you mix specific conditions with the general condition, the specific conditions take precedence.

Example of conditions on media features
<var
    data-hf-name="MediaSettings"
    data-hf-condition='{
        "cond": [{
            "type": "stage",
            "id": "ST1",
            "val": true
        }],
        "else": "readonly"
     }'
    data-hf-condition-sketches='{
        "cond": [{
            "type": "stage",
            "id": "ST1",
            "val": true
        }],
        "else": "invisible"
    }'
    data-hf-condition-maps='{
        "cond": [{
            "type": "stage",
            "id": "ST1",
            "val": true
        }],
        "else": "readonly",
        "addNewMedia": true
    }'
></var>

Save Image to Photo Album

Use this option to save all captured images through HybridForms to the photo album of a mobile device.

Info

The definition does not affect images captured within the web App.

<var data-hf-name="MediaSettings" data-hf-saveImageToPhotoAlbum="true"> </var>

Max Filename Length

Use the option maxFilenameLength to set the maximum length of the filename of an uploaded file. If the filename is longer than the given value, the filename gets shortened. Default value is 80.

<var data-hf-name="MediaSettings" data-hf-maxFilenameLength="20"> </var>

Character Whitelist

Same options as above within the FormSettings-variable. Use this option to set a whitelist of allowed characters for all media files the user is uploading. You can use the regular expression or the string version of the whitelist. If both are provided the regular expression is used. Optionally you can provide your own error text for the invalid character error message. If you want to give the user a hint what characters are not accepted in the current input, you can use the placeholder {0} in your error text (E.g: "The following characters are invalid: 0"). You can also provide translation keys. If no error text is provided, a default error message is used.

Note

The character whitelisting setting of the FormSettings variable is also applied to file names of the uploaded media files. If you want to allow special characters in the uploaded file names, you have to provide them in the media settings variable.

Register Maps

Use this option to register maps that should be available in your Form Template. Each of the listed maps has to be registered in the Admin UI. You can find more information on this topic in the section: Integration of maps.

hf-registeredMaps
<var data-hf-name="MediaSettings" data-hf-registerMaps="googleMapsApiKey,hfMap-MapLibreBaseMap,Basemap-OpenLayers">
</var>

Initializer

You can use this variable to define initializer functions that execute during the form rendered, view rendered (PDF), and form disposed events. Provide the namespace and function that is defined in Custom Code. When using this variable the data-hf-rendered function is required.

HTML
TypeScript

<var
    data-hf-name="Initializer"
    data-hf-rendered="HFFormdefinition.Namespace.onRendered"
    data-hf-view-rendered="HFFormdefinition.Namespace.onViewRendered"
    data-hf-disposed="HFFormdefinition.Namespace.onDisposed"
></var>

export function onRendered() {
    console.log('************** onRendered **************');
    HFFormdefinition.Namespace.doSomethingOnRendered();
}

export function onViewRendered() {
    console.log('************** onViewRendered **************');
    HFFormdefinition.Namespace.doSomethingOnViewRendered();
}

export function onDisposed() {
    console.log('************** onDisposed **************');
    HFFormdefinition.Namespace.doSomethingOnDisposed();
}

Note

This variable could be used to replace an Initializr custom control that has been utilized to execute Custom Code on form rendered events.

Reachout

HybridForms ReachOut is a module for anonymous external/internal use of forms. With the Reachout variable you can configure the behavior of the Reachout module.

<var
    data-hf-name="Reachout"
    data-hf-maxtime="60"
    data-hf-mintime="5"
    data-hf-show-preview="false"
    data-hf-show-pdf="S1,S3"
    data-hf-strings='{
        "PDFDownloadButton": "Download form as a PDF",
        "RemainingTime": "Remaining Time"
    }'
>
</var>

key	value	How to use	Description
data-hf-maxtime	Number	`"data-hf-maxtime="60"`	Set the maximum time for customers to fill out Reachout forms. Default is 90 minutes.
data-hf-mintime	Number	`"data-hf-mintime="5"`	Set the minimum time for customers to fill out Reachout forms. Default is 1 minute.
data-hf-show-preview	Boolean \| String	`"data-hf-show-preview": "S1,S4"`	Configure if or on what stage the preview should be displayed to the user. Provide a boolean or a comma seperated list of stage keys.
data-hf-show-pdf	Boolean \| String	`"data-hf-show-pdf": "false"`	Configure if or on what stage the PDF should be displayed to the user after sending the form. Provide a boolean or a comma seperated list of stage keys.
data-hf-strings	Object	`"data-hf-strings": '{ ... }'`	Specify the Reachout strings for the App.

Reachout strings

<var
    data-hf-name="Reachout"
    data-hf-strings='{
      "PDFDownloadButton": "Download form as a PDF",
      "RemainingTime": "Remaining Time",
      "RemainingTimeIsUp": "Unfortunately, you exceeded the maximum processing time of {0} minutes - the process was therefore canceled. If necessary, please start a new form.",
      "SubmissionError": "Your form could not be submitted.",
      "SubmissionSuccessMsg": "Your form was accepted with the process number #{0}. You will now receive a PDF version for viewing or downloading.",
      "SubmissionSuccessTitle": "Form submitted successfully",
      "SubmissionSuccessPrimaryBtn": "Continue to the PDF",
      "SubmissionSuccessHtml": "<strong>Your form has been submitted successfully.</strong> Process number #{0}.",
      "PreviewMsgHtml": "<strong> Preview: </strong> This is not yet a confirmation!",
      "PreviewLoadingMsg": "The preview of the form is prepared. Please be patient for a few seconds.",
      "ClosePreviewBtn": "Back/Edit",
      "PreviewBtn": "Go to Preview",
      "SendBtn": "Send",
      "CouldNotGetFormData": "The requested form data is currently not available. Please try again later.",
      "UploadingFormMsg": "Form is being uploaded",
      "TransmissionError": "A tranmission error has occurred. Please try again to upload the form.",
      "SaveError": "We are sorry. There has been an error.",
      "NotFilledOut": "You have not yet entered all mandatory fields",
      "ConfirmSendFormTitle": "Send form?",
      "ConfirmSendFormMsg": "Do you want to submit the form? No more changes can be made.",
      "ConfirmSendFormBtnLabel": "Send",
      "ST1": {
        ...
      }
  }'
>
</var>

Note

Stage depending strings can be provided by using the stage key as key in the strings object. Stage depending strings overwrite the default ones.

key	Default en	Default de	Variables	Usage
PDFDownloadButton	Download form as a PDF	Formular als PDF herunterladen.	-	Label of PDF download button after sending the form.
RemainingTime	Remaining time	Verbleibende Zeit	-	Label of "Remaining time" button in the bottom toolbar.
RemainingTimeIsUp	Unfortunately, you exceeded the maximum processing time of 0 minutes - the process was therefore canceled. If necessary, please start a new form.	Sie haben den maximalen Bearbeitungszeit von 60 Minuten leider überschritten – der Prozess wurde daher abgebrochen. Bitte beginnen Sie bei Bedarf ein neues Formular.	0 - Time in minutes	Label in the bottom toolbar of the form after fill out time is up.
SubmissionError	Your form could not be submitted.	Ihr Formular konnte nicht übermittelt werden.	-	Error message if submission failed.
SubmissionSuccessMsg	Your form was accepted with the process number #0. You will now receive a PDF version for viewing or downloading.	Ihr Formular wurde mit der Prozessnummer #0 übernommen. Sie erhalten nun eine PDF-Version zur Ansicht bzw. zum Download.	0 - Guid of process number	Info Text in Dialog after successfull submission.
SubmissionSuccessTitle	Form submitted successfully	Formular erfolgreich übermittelt	-	Title of dialog after successfull submission.
SubmissionSuccessPrimaryBtn	Continue to the PDF	Weiter zum PDF	-	Button label for dialog after successfull submission.
SubmissionSuccessHtml	Your form has been submitted successfully. Process number #0.	Ihr Formular wurde erfolgreich übermittelt. Prozessnummer #0.	0 - Guid of process number	Message in new window after successfull submission.
PreviewMsgHtml	Preview: This is not a confirmation!	Voransicht: Dies ist noch keine Bestätigung!	-	Message in the bottom toolbar of the form preview.
PreviewLoadingMsg	The preview of the form is prepared. Please be patient for a few seconds.	Die Voransicht des Formulars wird vorbereitet. Bitte haben Sie einige Sekunden Geduld.	-	Message when loading the form preview.
ClosePreviewBtn	Back/Edit	Zurück/ändern	-	Label of the "Close Preview" button on the form preview page.
PreviewBtn	Go to Preview	Weiter zur Voransicht	-	Label of the "Open Preview" button on the reachout form page.
SendBtn	Send	Senden	-	Label of the "Send" button.
CouldNotGetFormData	The requested form data is currently not available. Please try again later.	Die angeforderten Formulardaten sind derzeit nicht verfügbar. Bitte versuchen Sie es zu einem späteren Zeitpunkt nochmals.	-	Error message when form data could not be loaded.
UploadingFormMsg	Form is being uploaded	Formular wird hochgeladen	-	Message while form is being uploaded.
TransmissionError	A tranmission error has occurred. Please try again to upload the form.	Es ist ein Übermittlungsfehler aufgetreten. Bitte versuchen Sie nochmals, das Formular hochzuladen.	-	Error message when form could not be transmitted.
SaveError	We are sorry. There has been an error.	Es tut uns leid, es ist ein Fehler aufgetreten.	-	Error message when form could not be saved before transmission.
NotFilledOut	You have not yet entered all required fields	Sie haben noch nicht alle Pflichtfelder eingegeben	-	Label in the bottom toolbar if not all required fields are filled out.
ConfirmSendFormTitle	Send form?	Formular absenden?	-	Title of the send form dialog if the preview is not displayed to the user.
ConfirmSendFormMsg	Do you want to submit the form? No more changes can be made.	Wollen Sie das Formular absenden? Es können keine Änderungen mehr vorgenommen werden.	-	Message of the send form dialog if the preview is not displayed to the user.
ConfirmSendFormBtnLabel	Send	Absenden	-	Button label in the confirm dialog (shown to the user if no preview is displayed).

Title(s)*​

Version Info*​

DataSource​

FormDev DataSources​

App Kiosk Mode​

Sketch Templates​

ListPage Favorites​

Nested JSON Object 'grouping'​

Nested JSON Object 'sorting'​

Nested JSON Object 'filter'​

filterValue ('JSON Object')​

filterValue ('String')​

filterValue ('Boolean')​

Customized Approve Button​

Customized Color Palette​

Icon Picker​

Structure​

PDF Settings​

TabMenu Settings​

Form Settings​

Form Logo​

Character Whitelist​

Media Settings​

Picture Compression​

Compression options​

Feature Conditions​

Save Image to Photo Album​

Max Filename Length​

Character Whitelist​

Register Maps​

Initializer​

Reachout​

Reachout strings​

Title(s)*

Version Info*

DataSource

FormDev DataSources

App Kiosk Mode

Sketch Templates

ListPage Favorites

Nested JSON Object 'grouping'

Nested JSON Object 'sorting'

Nested JSON Object 'filter'

filterValue ('JSON Object')

filterValue ('String')

filterValue ('Boolean')

Customized Approve Button

Customized Color Palette

Icon Picker

Structure

PDF Settings

TabMenu Settings

Form Settings

Form Logo

Character Whitelist

Media Settings

Picture Compression

Compression options

Feature Conditions

Save Image to Photo Album

Max Filename Length

Character Whitelist

Register Maps

Initializer

Reachout

Reachout strings
