Repeating Units

In some cases, it is useful to give the user the chance to repeat a set of controls within the form. For instance, in a medical form the user could add multiple patient data. Provide this functionality by adding repeating units using data-hf-repeatable in the second level navigation.

Note

Setting the attribute id in the second level navigation is mandatory for both, the repeating units as well as for the expandable content.

Repeating Unit (object notation)

<li
    id="tabRepeatingUnit"
    data-hf-title="Repeating Unit"
    data-hf-repeating='{
        "min": 1,
        "max": 10,
        "label": "Repeating Unit",
        "labelAdd": "Add",
        "labelRemove": "Remove",
        "anchors": true,
        "toolbar": true,
        "showOnlyLastToolbar": true,
        "alwaysShowHeaderFooter": false,
        "header: ["repeating1HeaderBlock1","repeating1HeaderBlock2"]
        "footer": {
            "blocks": ["../DemoForm.templ/DemoForm.templ.html#repeating1FooterBlock1","../DemoForm.templ/DemoForm.templ.html#repeating1FooterBlock2"],
            "idPrefix": "ru1_",
            "phPrefix": "ru1_",
            "phPlaceholder1": "Footer Placeholder1",
            "phPlaceholder2": "Footer Placeholder2"
        }
    }'
>
    [... block links]
</li>

Repeating Unit (attribute notation)

<!-- deprecated -->
<li
    id="tabRepeatingUnit"
    data-hf-title="Repeating Unit"
    data-hf-expandable="true"
    data-hf-repeatable="true"
    data-hf-repeatablemin="0"
    data-hf-repeatablemax="10"
    data-hf-repeatablelabel="New contact"
    data-hf-repeatablelabeladd="Add"
    data-hf-repeatablelabelremove="Remove"
    data-hf-repeatableheader="repeating1HeaderBlock1,repeating1HeaderBlock2"
    data-hf-repeatablefooter="repeating1FooterBlock1,repeating1FooterBlock2"
    data-hf-repeatablealwaysshowheaderfooter="true"
    data-hf-repeatableanchors="false"
    data-hf-repeatabletoolbar="true"
    data-hf-repeatableshowonlylasttoolbar="true"
>
    [... block links]
</li>

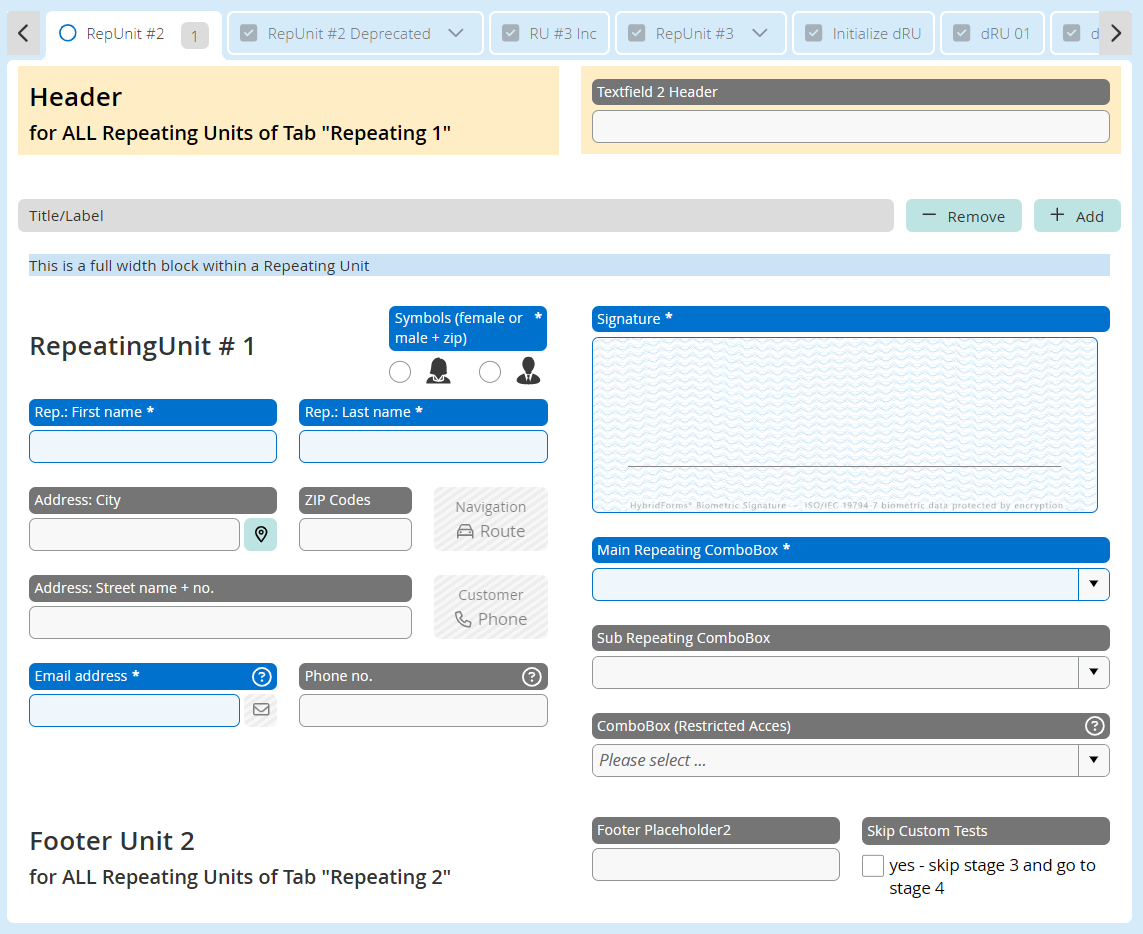

Repeating Units plus Header and Footer

Attributes	Type	How to use	Description
id*	String	id="contact"	Set the ID of the tab.
min \ data-hf-repeatablemin**	Number	"min"=3	Default value is 1. Numbers from 0 to 99 can be used.
max \ data-hf-repeatablemax**	Number	"max"=10	Default value is 99. Numbers from 1 to 99 can be used.
label \ data-hf-repeatablelabel**	String	"label"="New contact unit"	Choose a general wording/label for the repeating unit. Default value is "Repeating unit".
labelAdd \ data-hf-repeatablelabeladd**	String	"labelAdd"="Add contact"	Choose a wording/label for the add button. Default value is "Add new unit" (optional).
labelRemove \ data-hf-repeatablelabelremove**	String	"labelRemove"="Remove contact"	Choose a wording/label for the remove button. Default value is "Remove last unit".
anchors \ data-hf-repeatableanchors**	Boolean	"anchors"=false	Default value is true. En/disable linking anchors to the repeating unit by setting true or false.
toolbar \ data-hf-repeatabletoolbar**	Boolean	"toolbar"=false	Default value is true. En/disable visibility of all toolbars of the repeating unit by setting true or false.
showOnlyLastToolbar \ data-hf-repeatableshowonlylasttoolbar**	Boolean	"showonlylasttoolbar"=true	Default value is false. En/disable visibility of all toolbars except the last one of the repeating unit by setting true or false.
header \ data-hf-repeatableheader**	String	"header"=[repeating1HeaderBlock1, repeating1HeaderBlock2]	Define the two blocks displayed as header of all repeating units inside the tab. These blocks are inserted only once.
footer \ data-hf-repeatablefooter**	string	"footer"=[repeating1FooterBlock1, repeating1FooterBlock2]	Define the two blocks displayed as footer of all repeating units inside the tab. These blocks are inserted only once.
alwaysShowHeaderFooter \ data-hf-repeatablealwaysshowheaderfooter**	string	"alwaysShowHeaderFooter"=true	Define if Header and Footer is always visible even if there are no RepeatingUnits.
data-hf-repeatable*	Boolean	data-hf-repeatable="true"	-deprecated - Set the attribute to true to enable repeating units.

* These options are required ** These options are deprecated

There are additionally several possibilities to offer the user a better overview within the repeating units:

Option 1: Use headings which include the block number calculated by the application.

<div class="grid column1">
    <div class="r1 c1">
        <h3>Contact #<span data-win-bind="textContent: repeatableCount"></span></h3>
    </div>
</div>

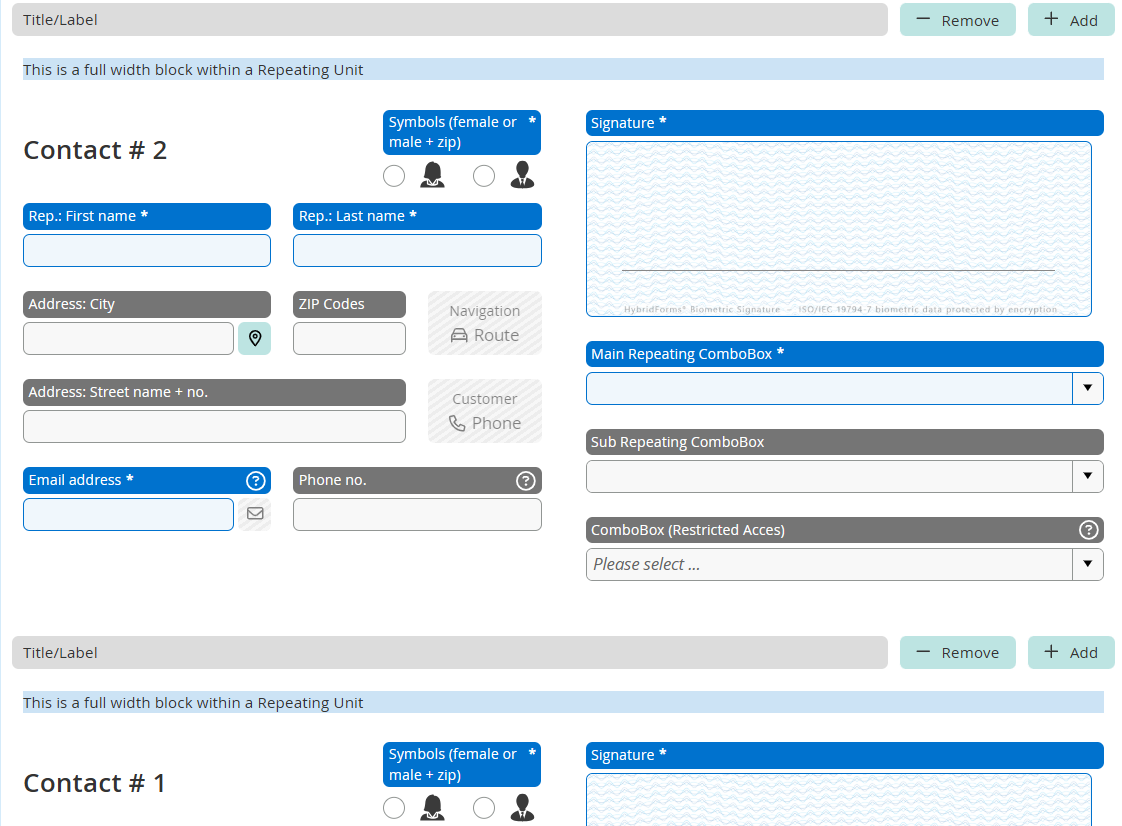

Repeating Unit Counter

Option 2: Use "anchors": true to add linking anchors to the tab menu so the user can easily navigate to the selected repeating block.

Option 3: Use CSS-styling to provide a better overview when coloring every second repeating unit’s background.

formpage .main-content .sheet .repeatingunit:nth-child(odd) {
    background-color: lightgray;
}

Option 4: Use Includes to define header/footer blocks only once for multiple use in your form definition.

<li
    data-hf-repeating='{
    "footer": {
        "blocks": ["../DemoForm.templ/DemoForm.templ.html#repeating1FooterBlock1","../DemoForm.templ/DemoForm.templ.html#repeating1FooterBlock2"],
        "idPrefix": "ru1_",
        "phPrefix": "ru1_",
        "phPlaceholder1": "Footer Placeholder1",
        "phPlaceholder2": "Footer Placeholder2"
    }
}'
></li>

Note

In opposite to the inclusion of blocks inside not repeatable tabs you have to use idprefix instead of data-id-prefix, phPrefix instead of data-id-prefix and ph[customValue] instead of data-ph-[customValue].
